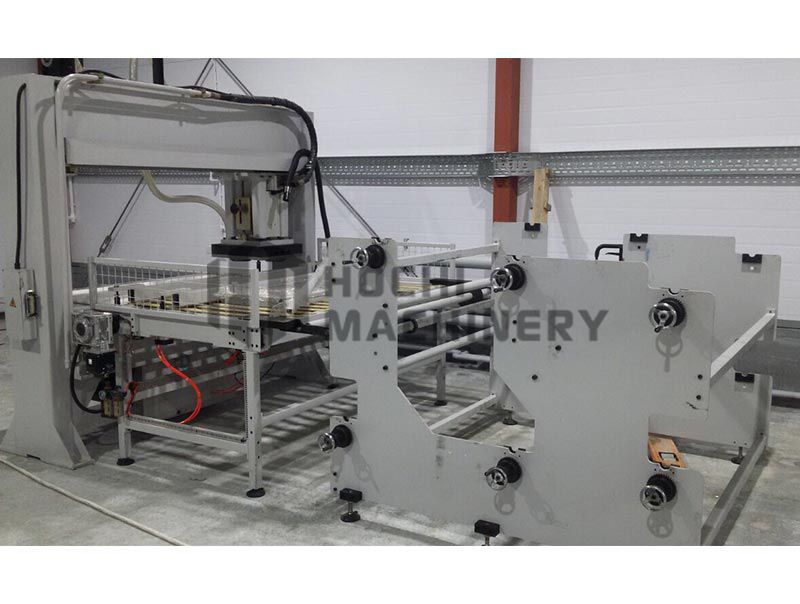

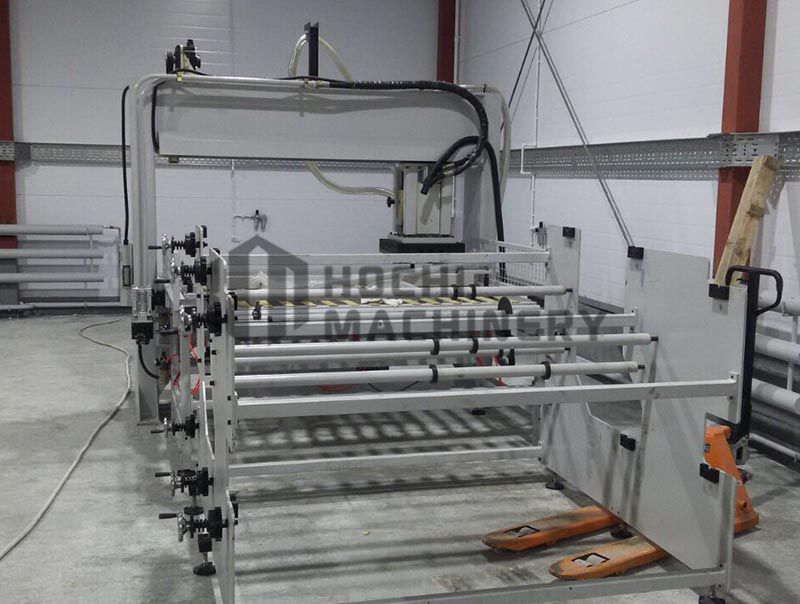

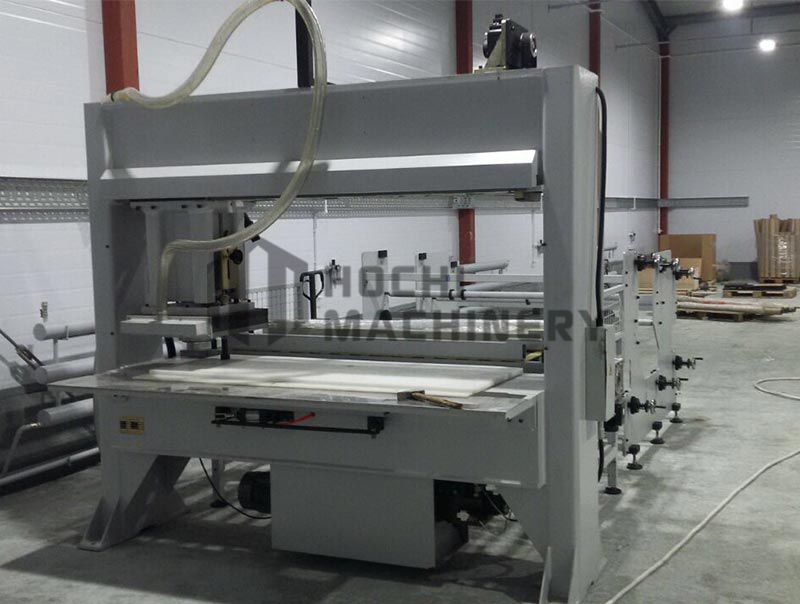

HC-DA01 Automatic Travelling Head Press

Demo video: HC-DA01 Automatic Travelling Head Press

Detailed introduction

Ⅰ.Main technical specifications and configuration

1.Max. Cutting force:350KN;

2.Cutting Area:2000×500mm(Made as your max. Material width);

3.Press Head:500×500mm;

4.The distance between the table and head:180mm;

5.Adjustable Travel:5-150mm;

6.Cutting Speed:100mm/S;

7.Main Motor Power:3KW;

8.Servo Motor Power(Transverse motor):2KW;

9.Feeding motor:1.5KW;

10.Hydraulic System Working Pressure:≤31.5MPa;

11.Power Supply:AC380V/50HZ(Customized)

II.Main configuration characteristic

1. The machine is applicable to continuous cutting operation of nonmetal rolled materials or sheet materials of same specifications and large batches by die cutter. For example: used in such industries as fabric,shoes,abrasive paper, football, volleyball, tennis and medicine etc.
2. The servo motor is adopted to control the horizontal movement of cutting head, and the multilayer materials are clamped by the cylinder for stepping feeding. The machine can automatically complete the cutting of materials and the displacement distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.
3. The machine has various working modes such as inching, manual and automatic etc. modes. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.
4. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.

5. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.

6. The hydraulic system specially designed is featured by low noise and low oil consumption.

7. Differential oil way is adopted to allow rapid and convenient cutting.

8. With automatic feeding the material, automatic cutting.

9.The oil cylinder and piston rod surface with high frequency processing, to ensure the machine’s service life.

10. Products of special specifications can be customized.
