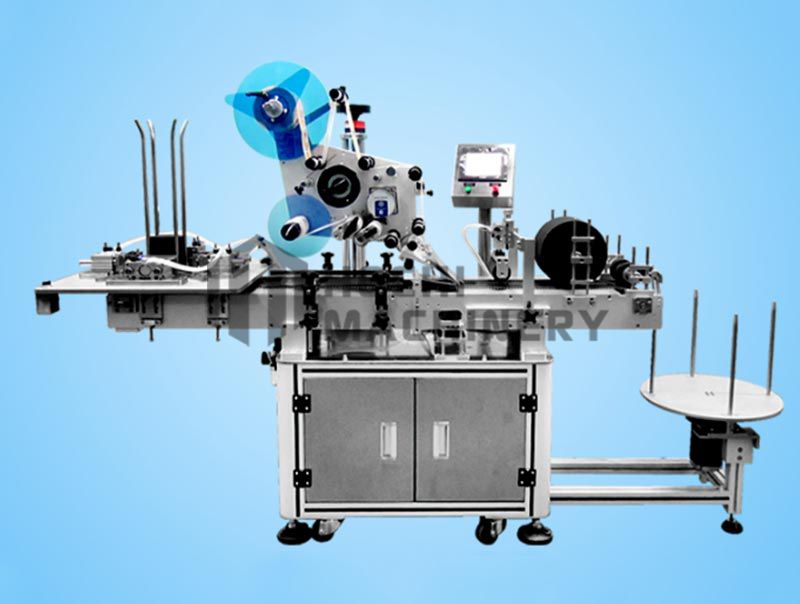

HC-FL Flap Disc Labelling Machine

Suitable for labelling fiberglass plate flap disc, diameter from 100-180mm.

Detailed introduction

Application

Suitable for labelling fiberglass plate flap disc, diameter from 100-180mm.


Characters

1. PLC control, human-computer interface, easy operating.

2. With auto blanking device, fast and accurate. Stable operation, high efficiency. Reduce the cost.

3. With servo motor feeding the label,deliver labels accurate and efficient, stable and fast. To ensure accurate labeling.


Technical data

Suitable base: Fiberglass backing plate flap disc, plastic backing plate flap disc

1.Power: AC380V, 50HZ(Customized)

2.Dimensions: Approx. 1960(L)*700(W)*1350(H)(mm)

3.Conveyor height: 750mm(Customized)

4.Weight: Appox.260Kg

5.Labeling speed:Approx. 20-45 pcs/min

6.Labeling accuracy:±1-2 mm

7.Applicable product size:φ100~180mm

8.Applicable label size:width 30~180mm,length 30~180mm

9.Max label roll supply:outer diameter 280mm, inner diameter 76mm

10.Air supply: 0.4-0.6 Mpa

11.Operating environment: 10-40℃

12.Environmental relative humidity:15-85%

HC-FL Flap Disc Labeling Machine
